Datasheet industrial spray 2.2 ml, white

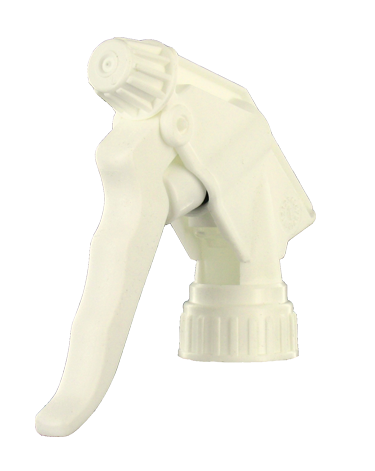

The MAXI sprayer is a professional high-performance model with a very high output of 2.2 ml per stroke.
The MAXI has an extremely robust construction, designed for constant use over a long period. It has a long contoured three-finger trigger for effort-free operation. The trigger surface is textured for an easy grip even with wet or gloved hands.
The nozzle is fully adjustable from a fine mist to a direct jet. A foamer nozzle is also available. The diptube filter is fitted as standard.
The Maxi is recommended for professional, industrial and janitorial use and for all applications where a large quantity of product sprayed is required.

General Information

  • Ordering numbers : MAXI JTBS245BBLA
  • Spraying capacity : 2.2 ml
  • Weight : 38.00 gr
  • Color : white
  • Tube length : 245 mm

Neck : 28/400

Standard packaging : C01SP

  • 400 pcs per box
  • Dimensions 57 x 39 x 55 cm
  • Gross weight 16.45 Kg


Exploded View

PosdescriptionMaterial
1 Body PP
2 Rivet POM
3 Ring PP
4 Ball st. steel 302
5 Connection PP
6 Tube PE
7 Filter PP
8 Trigger PP
9 Washer holder PP
10 Washer NBR
11 Spring st. steel 302
12 Nozzle PP
13 Valve POM
14 O-ring NBR
15 Seal PE/EPE
